CSD86350Q5D

In Stock: 2,119

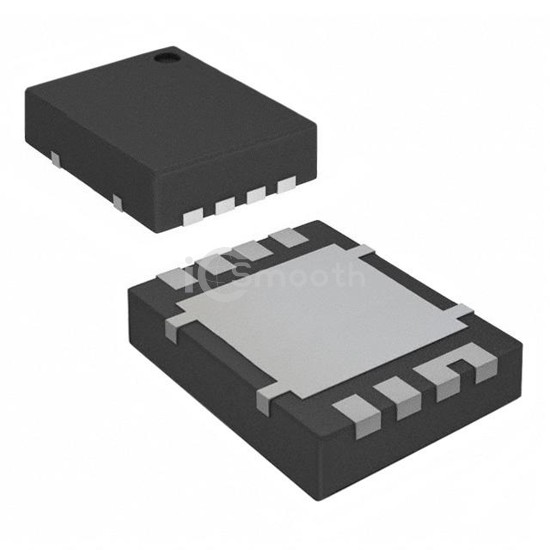

CSD86350Q5D - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD86350Q5D Texas Instruments
CSD86350Q5D

Texas Instruments

MOSFET 2N-CH 25V 40A 8SON

CSD86350Q5D is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 25V 40A 8SON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerLDFN, power - max 13W.

Datasheet Request a Quote

In Stock: 2,119

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C40A
Rds On (Max) @ Id, Vgs6mOhm @ 20A, 8V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1870pF @ 12.5V
Power - Max13W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerLDFN
Supplier Device Package8-LSON (5x6)
