Name: CSD86336Q3D
Brand: Texas Instruments
SKU: CSD86336Q3D
Price: 2.04 USD
Availability: InStock

REF: CSD86336Q3D Texas Instruments

CSD86336Q3D

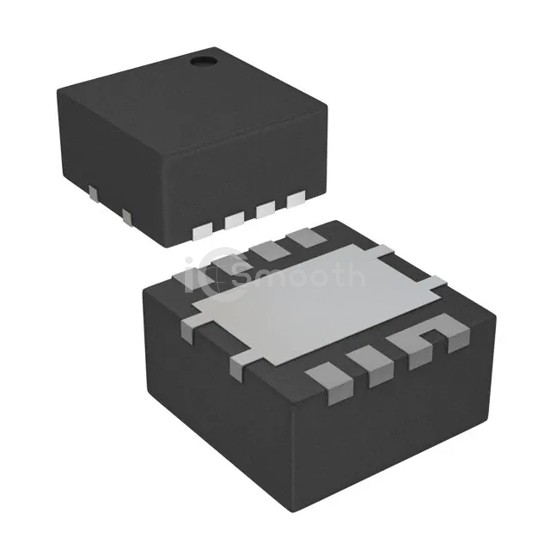

25V POWERBLOCK N CH MOSFET

CSD86336Q3D is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. 25V POWERBLOCK N CH MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 8-PowerTDFN, power - max 6W.

Datasheet Request a Quote

In Stock: 5,546

Tiered Pricing USD

1+ $2.0400 —

10+ $1.3030 -36%

100+ $0.8814 -57%

500+ $0.7006 -66%

1,000+ $0.6610 -68% BEST

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Rds On (Max) @ Id, Vgs	9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
Vgs(th) (Max) @ Id	1.9V @ 250µA, 1.6V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	3.8nC @ 45V, 7.4nC @ 45V
Input Capacitance (Ciss) (Max) @ Vds	494pF @ 12.5V, 970pF @ 12.5V
Power - Max	6W
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-VSON (3.3x3.3)
