Name: CSD86330Q3D
Brand: Texas Instruments
SKU: CSD86330Q3D
Price: 2.32 USD
Availability: InStock

REF: CSD86330Q3D Texas Instruments

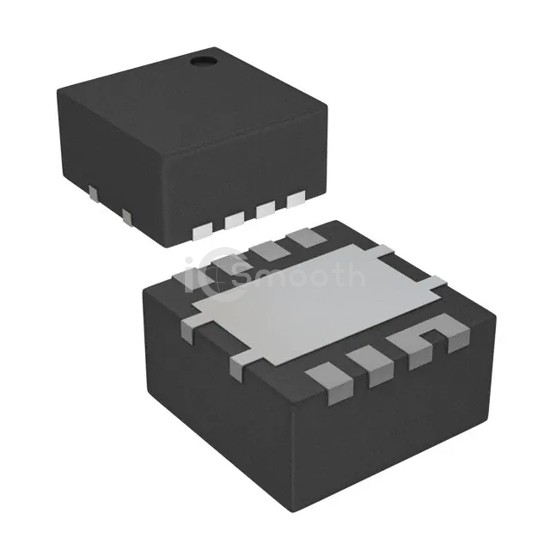

CSD86330Q3D

MOSFET 2N-CH 25V 20A 8LSON

CSD86330Q3D is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 25V 20A 8LSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerLDFN, power - max 6W.

Datasheet Request a Quote

In Stock: 6,459

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	20A
Rds On (Max) @ Id, Vgs	9.6mOhm @ 14A, 8V
Vgs(th) (Max) @ Id	2.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	6.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	920pF @ 12.5V
Power - Max	6W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerLDFN
Supplier Device Package	8-LSON (3.3x3.3)
