CSD85312Q3E

In Stock: 53,400

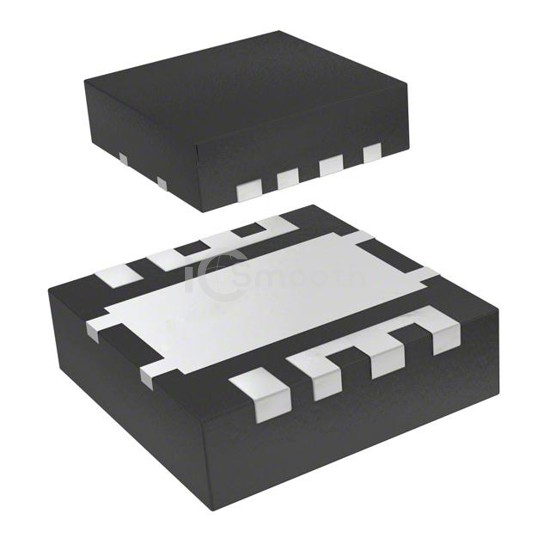

CSD85312Q3E - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD85312Q3E Texas Instruments
CSD85312Q3E

Texas Instruments

MOSFET 2N-CH 20V 39A 8VSON

CSD85312Q3E is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 20V 39A 8VSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 2.5W.

Datasheet Request a Quote

In Stock: 53,400

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C39A
Rds On (Max) @ Id, Vgs12.4mOhm @ 10A, 8V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds2390pF @ 10V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device Package8-VSON (3.3x3.3)
