CSD85302L

In Stock: 8,943

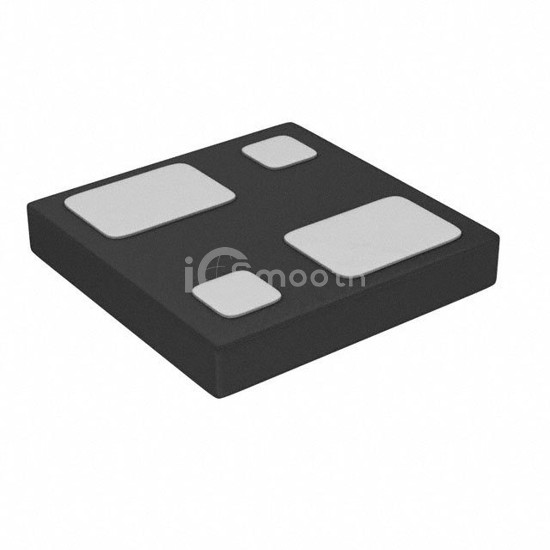

CSD85302L - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD85302L Texas Instruments
CSD85302L

Texas Instruments

MOSFET 2N-CH 20V 5A

CSD85302L is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 20V 5A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFLGA, power - max 1.7W.

Datasheet Request a Quote

In Stock: 8,943

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)-
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs7.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds-
Power - Max1.7W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-XFLGA
Supplier Device Package4-Picostar (1.31x1.31)
