CSD85301Q2T

In Stock: 3,365

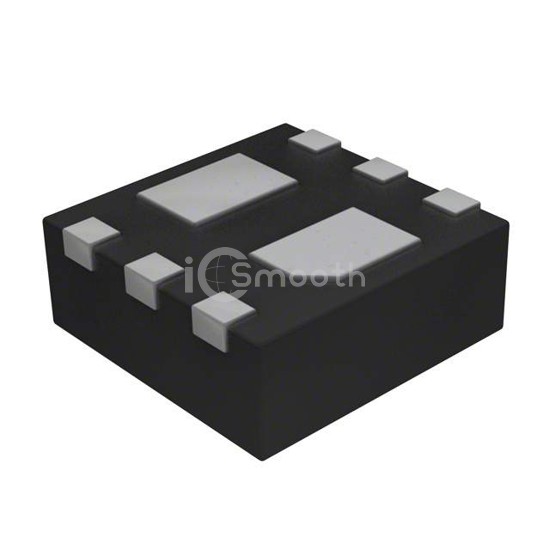

CSD85301Q2T - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD85301Q2T Texas Instruments
CSD85301Q2T

Texas Instruments

MOSFET 2N-CH 20V 5A 6WSON

CSD85301Q2T is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 20V 5A 6WSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 2.3W.

Datasheet Request a Quote

In Stock: 3,365

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5A
Rds On (Max) @ Id, Vgs27mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds469pF @ 10V
Power - Max2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WSON (2x2)
