CSD83325L

In Stock: 6

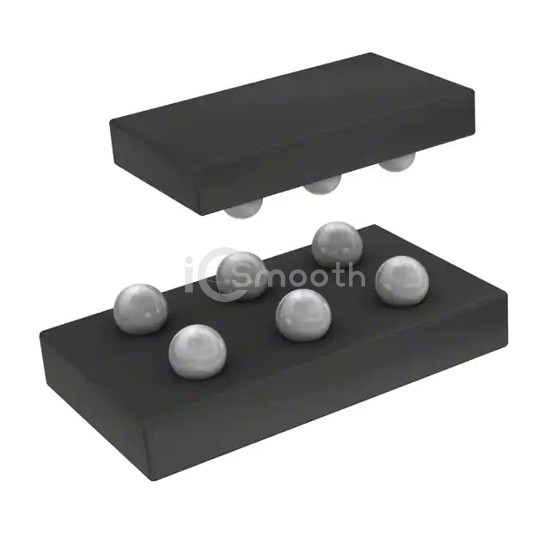

CSD83325L - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD83325L Texas Instruments
CSD83325L

Texas Instruments

MOSFET 2N-CH 12V 6PICOSTAR

CSD83325L is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2N-CH 12V 6PICOSTAR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-XFBGA, power - max 2.3W.

Datasheet Request a Quote

In Stock: 6

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds-
Power - Max2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-XFBGA
Supplier Device Package6-PicoStar
