CSD75211W1723

In Stock: 6,986

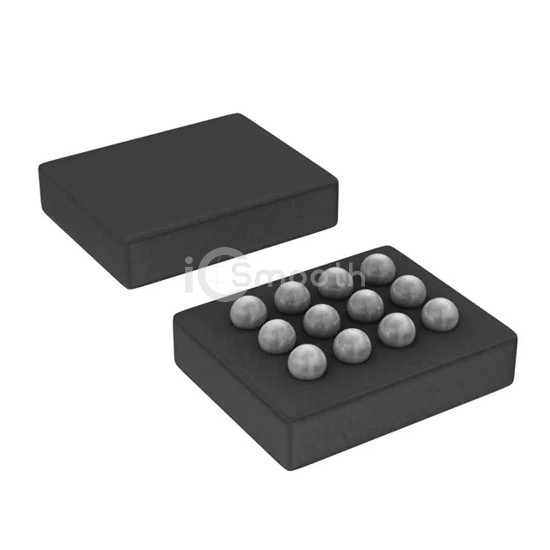

CSD75211W1723 - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD75211W1723 Texas Instruments
CSD75211W1723

Texas Instruments

MOSFET 2P-CH 20V 4.5A 12DSBGA

CSD75211W1723 is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2P-CH 20V 4.5A 12DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 12-UFBGA, DSBGA, power - max 1.5W.

Datasheet Request a Quote

In Stock: 6,986

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C4.5A
Rds On (Max) @ Id, Vgs40mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds600pF @ 10V
Power - Max1.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-UFBGA, DSBGA
Supplier Device Package12-DSBGA
