Name: CSD75207W15
Brand: Texas Instruments
SKU: CSD75207W15
Price: 0.71 USD
Availability: InStock

REF: CSD75207W15 Texas Instruments

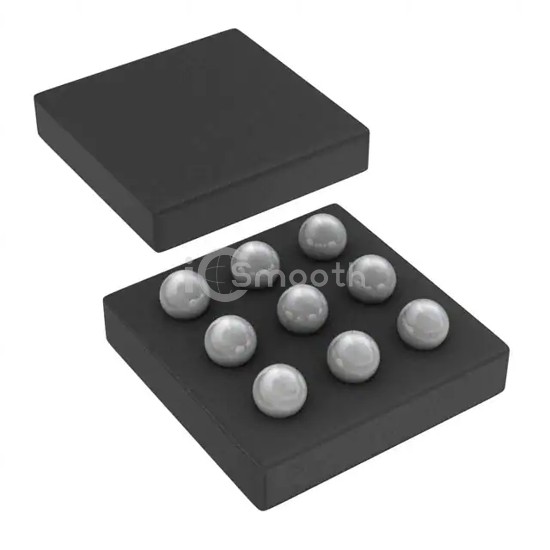

CSD75207W15

MOSFET 2P-CH 3.9A 9DSBGA

CSD75207W15 is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2P-CH 3.9A 9DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-UFBGA, DSBGA, power - max 700mW.

Datasheet Request a Quote

In Stock: 8,271

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual) Common Source
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	3.9A
Rds On (Max) @ Id, Vgs	162mOhm @ 1A, 1.8V
Vgs(th) (Max) @ Id	1.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	3.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	595pF @ 10V
Power - Max	700mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	9-UFBGA, DSBGA
Supplier Device Package	9-DSBGA
