CSD75205W1015

In Stock: 3,464

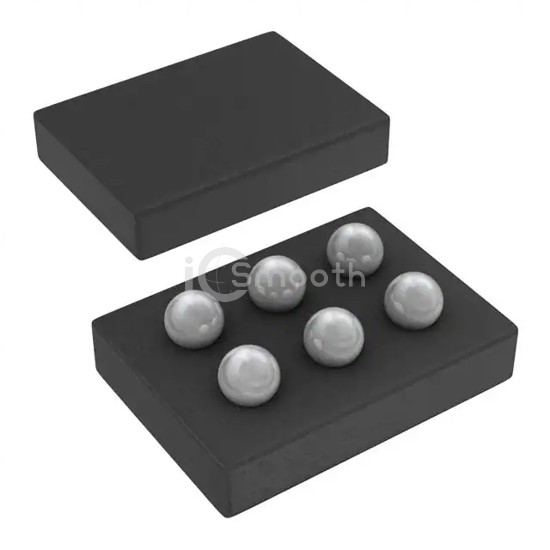

CSD75205W1015 - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD75205W1015 Texas Instruments
CSD75205W1015

Texas Instruments

MOSFET 2P-CH 20V 1.2A 6DSBGA

CSD75205W1015 is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2P-CH 20V 1.2A 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFBGA, DSBGA, power - max 750mW.

Datasheet Request a Quote

In Stock: 3,464

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C1.2A
Rds On (Max) @ Id, Vgs120mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id850mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds265pF @ 10V
Power - Max750mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-UFBGA, DSBGA
Supplier Device Package6-DSBGA (1x1.5)
