CSD75204W15

In Stock: 5,135

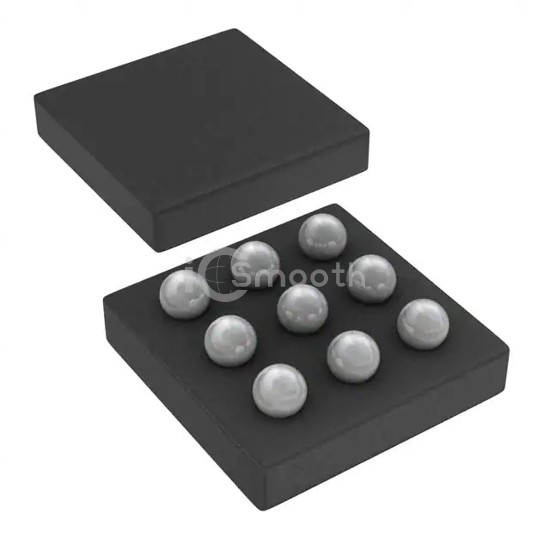

CSD75204W15 - Texas Instruments - Transistors - FETs, MOSFETs - Arrays
REF: CSD75204W15 Texas Instruments
CSD75204W15

Texas Instruments

MOSFET 2P-CH 3A 9DSBGA

CSD75204W15 is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. MOSFET 2P-CH 3A 9DSBGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 9-UFBGA, DSBGA, power - max 700mW.

Datasheet Request a Quote

In Stock: 5,135

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)-
Current - Continuous Drain (Id) @ 25°C3A
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds410pF @ 10V
Power - Max700mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case9-UFBGA, DSBGA
Supplier Device Package9-DSBGA
