Name: TSM9933DCS RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM9933DCS RLG
Availability: InStock

REF: TSM9933DCS RLG Taiwan Semiconductor Corporation

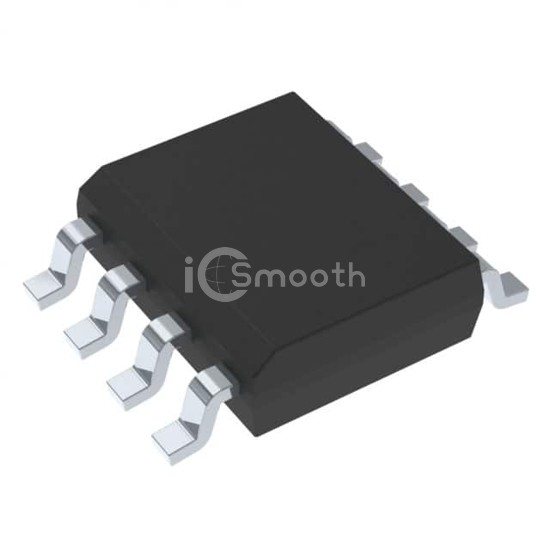

TSM9933DCS RLG

MOSFET 2 P-CH 20V 4.7A 8SOP

TSM9933DCS RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 P-CH 20V 4.7A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 2W.

Datasheet Request a Quote

In Stock: 7,374

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.7A (Tc)
Rds On (Max) @ Id, Vgs	60mOhm @ 4.7A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	8.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	640pF @ 10V
Power - Max	2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
