Name: TSM8588CS RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM8588CS RLG
Price: 1.69 USD
Availability: InStock

REF: TSM8588CS RLG Taiwan Semiconductor Corporation

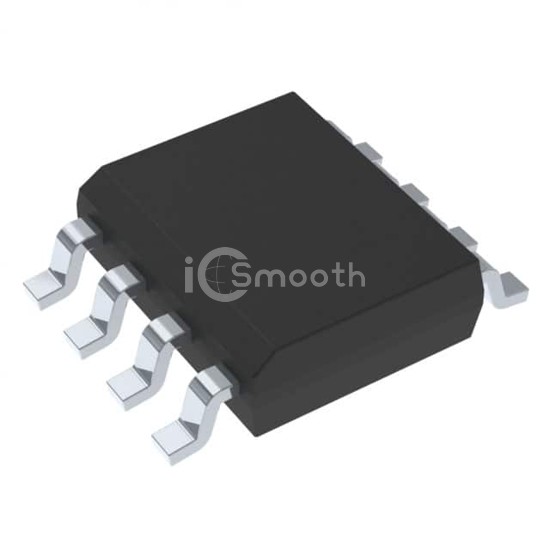

TSM8588CS RLG

Taiwan Semiconductor Corporation

COMPLEMENTARY N & P-CHANNEL POWE

TSM8588CS RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. COMPLEMENTARY N & P-CHANNEL POWE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 1.4W (Ta), 5.7W (Tc).

Datasheet Request a Quote

In Stock: 9,496

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel Complementary
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta), 5A (Tc), 2A (Ta), 4A (Tc)
Rds On (Max) @ Id, Vgs	103mOhm @ 2.5A, 10V, 180mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	9.4nC @ 10V, 9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	527pF @ 30V, 436pF @ 30V
Power - Max	1.4W (Ta), 5.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
