Name: TSM6968DCA RVG
Brand: Taiwan Semiconductor Corporation
SKU: TSM6968DCA RVG
Price: 1.88 USD
Availability: InStock

REF: TSM6968DCA RVG Taiwan Semiconductor Corporation

TSM6968DCA RVG

Taiwan Semiconductor Corporation

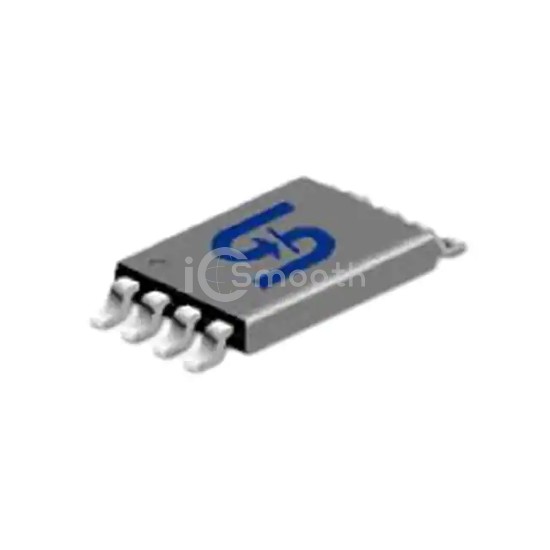

MOSFET 2 N-CH 20V 6.5A 8TSSOP

TSM6968DCA RVG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 N-CH 20V 6.5A 8TSSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-TSSOP (0.173", 4.40mm Width), power - max 1.04W.

Datasheet Request a Quote

In Stock: 6,282

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6.5A (Tc)
Rds On (Max) @ Id, Vgs	22mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	950pF @ 10V
Power - Max	1.04W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	8-TSSOP
