Name: TSM6502CR RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM6502CR RLG
Price: 2.48 USD
Availability: InStock

REF: TSM6502CR RLG Taiwan Semiconductor Corporation

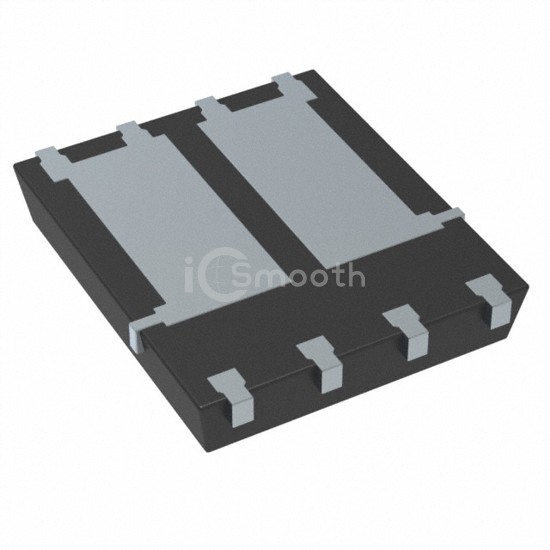

TSM6502CR RLG

Taiwan Semiconductor Corporation

MOSFET N/P-CH 60V 24A/18A 8PDFN

TSM6502CR RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET N/P-CH 60V 24A/18A 8PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 40W.

Datasheet Request a Quote

In Stock: 15,000

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	24A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs	34mOhm @ 5.4A, 10V, 68mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10.3nC @ 4.5V, 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1159pF @ 30V, 930pF @ 30V
Power - Max	40W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-PDFN (5x6)
