Name: TSM500P02DCQ RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM500P02DCQ RFG
Price: 1.25 USD
Availability: InStock

REF: TSM500P02DCQ RFG Taiwan Semiconductor Corporation

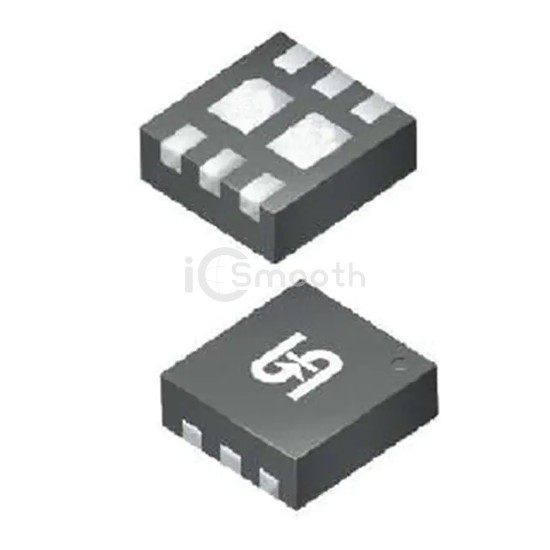

TSM500P02DCQ RFG

Taiwan Semiconductor Corporation

MOSFET 2 P-CH 20V 4.7A 6TDFN

TSM500P02DCQ RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 P-CH 20V 4.7A 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 620mW.

Datasheet Request a Quote

In Stock: 8,751

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.7A (Tc)
Rds On (Max) @ Id, Vgs	50mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 250µA

Gate Charge (Qg) (Max) @ Vgs	9.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1230pF @ 10V
Power - Max	620mW
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-TDFN (2x2)
