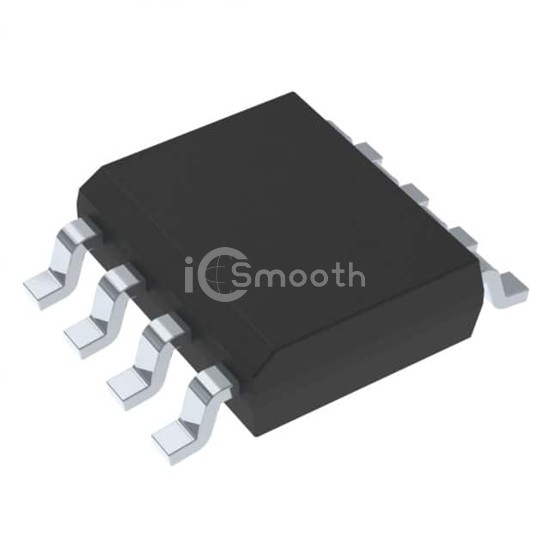

Name: TSM4925DCS RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM4925DCS RLG
Price: 1.32 USD
Availability: InStock

REF: TSM4925DCS RLG Taiwan Semiconductor Corporation

TSM4925DCS RLG

Taiwan Semiconductor Corporation

MOSFET 2 P-CH 30V 7.1A 8SOP

TSM4925DCS RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 P-CH 30V 7.1A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 2W.

Datasheet Request a Quote

In Stock: 6,536

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	7.1A (Ta)
Rds On (Max) @ Id, Vgs	25mOhm @ 7.1A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	33nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1900pF @ 15V
Power - Max	2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
