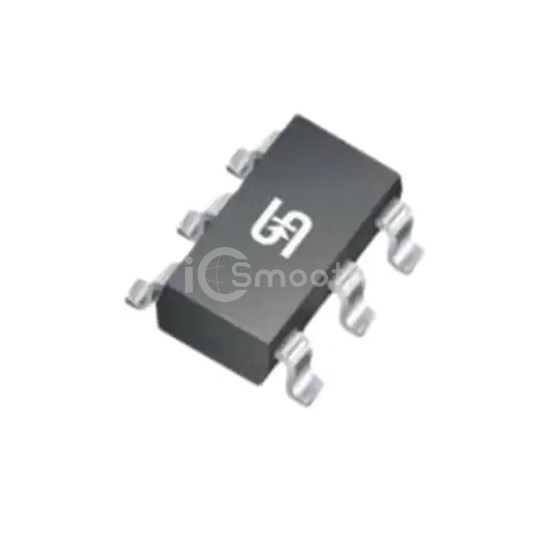

Name: TSM3911DCX6 RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM3911DCX6 RFG
Price: 1.69 USD
Availability: InStock

REF: TSM3911DCX6 RFG Taiwan Semiconductor Corporation

TSM3911DCX6 RFG

Taiwan Semiconductor Corporation

MOSFET 2 P-CH 20V 2.2A SOT26

TSM3911DCX6 RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 P-CH 20V 2.2A SOT26. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6, power - max 1.15W.

Datasheet Request a Quote

In Stock: 5,119

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2.2A (Ta)
Rds On (Max) @ Id, Vgs	140mOhm @ 2.2A, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA

Gate Charge (Qg) (Max) @ Vgs	15.23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	882.51pF @ 6V
Power - Max	1.15W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-26
