Name: TSM2N7002AKDCU6 RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM2N7002AKDCU6 RFG
Price: 0.39 USD
Availability: InStock

REF: TSM2N7002AKDCU6 RFG Taiwan Semiconductor Corporation

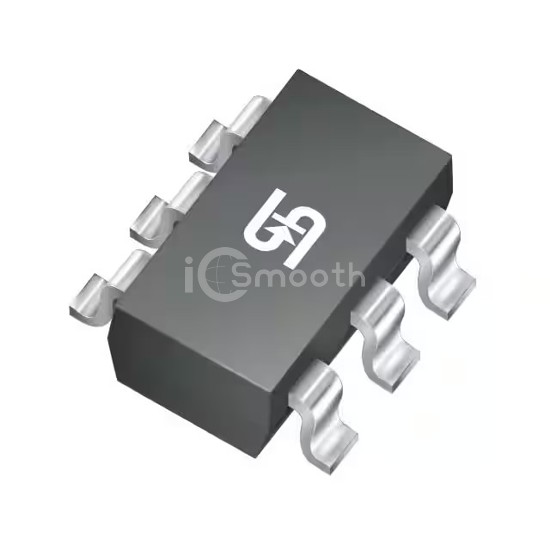

TSM2N7002AKDCU6 RFG

Taiwan Semiconductor Corporation

60V, 0.22A, DUAL N-CHANNEL POWER

TSM2N7002AKDCU6 RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. 60V, 0.22A, DUAL N-CHANNEL POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363, power - max 240mW (Ta).

Datasheet Request a Quote

In Stock: 2,950

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	220mA (Ta)
Rds On (Max) @ Id, Vgs	2.5Ohm @ 220mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	0.91nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	30pF @ 30V
Power - Max	240mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
