Name: TSM2537CQ RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM2537CQ RFG
Price: 1.50 USD
Availability: InStock

REF: TSM2537CQ RFG Taiwan Semiconductor Corporation

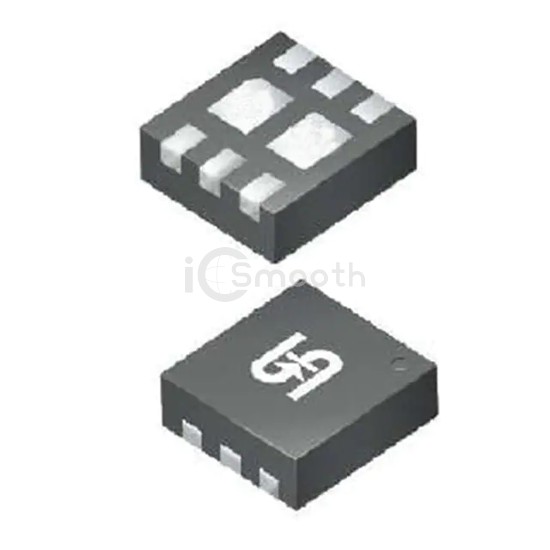

TSM2537CQ RFG

Taiwan Semiconductor Corporation

MOSFET N/P-CH 20V 11.6A/9A 6TDFN

TSM2537CQ RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET N/P-CH 20V 11.6A/9A 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 6.25W.

Datasheet Request a Quote

In Stock: 20,000

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	11.6A (Tc), 9A (Tc)
Rds On (Max) @ Id, Vgs	30mOhm @ 6.4A, 4.5V, 55mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	9.1nC @ 4.5V, 9.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	677pF @ 10V, 744pF @ 10V
Power - Max	6.25W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-TDFN (2x2)
