Name: TSM250NB06DCR RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM250NB06DCR RLG
Price: 2.72 USD
Availability: InStock

REF: TSM250NB06DCR RLG Taiwan Semiconductor Corporation

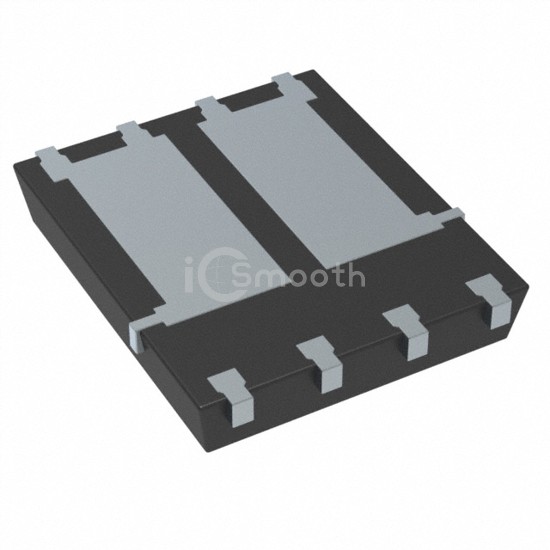

TSM250NB06DCR RLG

Taiwan Semiconductor Corporation

DUAL N-CHANNEL POWER MOSFET 60V,

TSM250NB06DCR RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. DUAL N-CHANNEL POWER MOSFET 60V,. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 2W (Ta), 48W (Tc).

Datasheet Request a Quote

In Stock: 2,970

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	7A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs	25mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	22nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1461pF @ 30V
Power - Max	2W (Ta), 48W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-PDFN (5x6)
