TSM250N02DCQ RFG

In Stock: 75,206

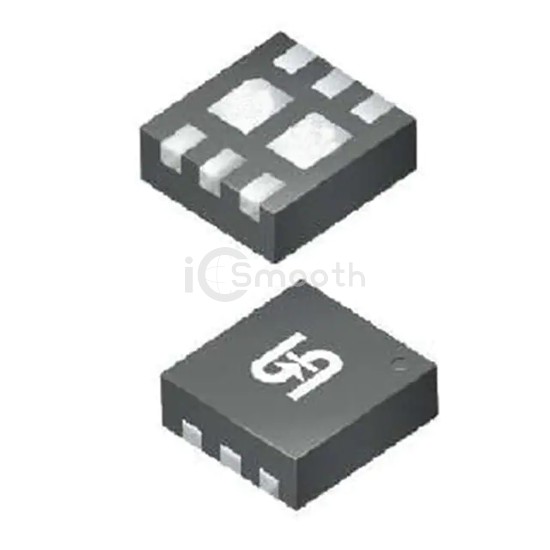

TSM250N02DCQ RFG - Taiwan Semiconductor Corporation - Transistors - FETs, MOSFETs - Arrays
REF: TSM250N02DCQ RFG Taiwan Semiconductor Corporation
TSM250N02DCQ RFG

Taiwan Semiconductor Corporation

MOSFET 2 N-CH 20V 5.8A 6TDFN

TSM250N02DCQ RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 N-CH 20V 5.8A 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 620mW.

Datasheet Request a Quote

In Stock: 75,206

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5.8A (Tc)
Rds On (Max) @ Id, Vgs25mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds775pF @ 10V
Power - Max620mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VDFN Exposed Pad
Supplier Device Package6-TDFN (2x2)
