TSM200N03DPQ33 RGG

In Stock: 4,102

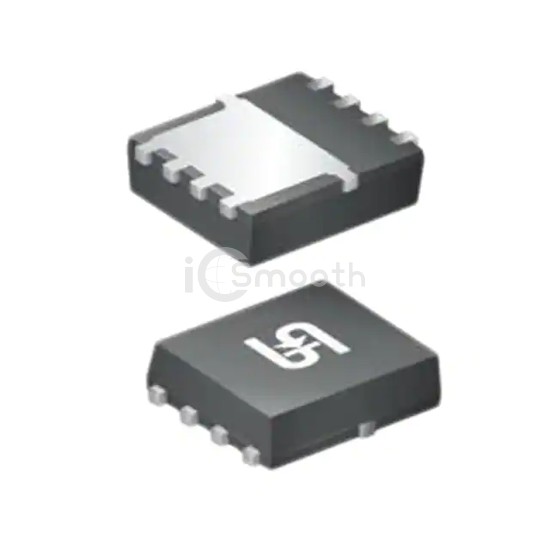

TSM200N03DPQ33 RGG - Taiwan Semiconductor Corporation - Transistors - FETs, MOSFETs - Arrays
REF: TSM200N03DPQ33 RGG Taiwan Semiconductor Corporation
TSM200N03DPQ33 RGG

Taiwan Semiconductor Corporation

MOSFET 2 N-CH 30V 20A 8PDFN

TSM200N03DPQ33 RGG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 N-CH 30V 20A 8PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 20W.

Datasheet Request a Quote

In Stock: 4,102

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Rds On (Max) @ Id, Vgs20mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds345pF @ 25V
Power - Max20W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-PDFN (3x3)
