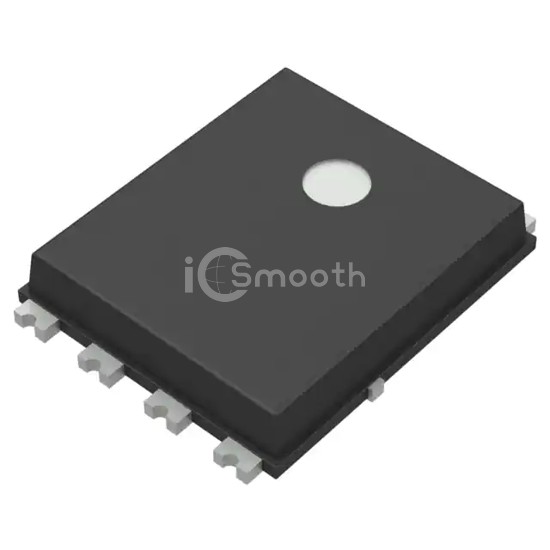

Name: TQM110NB04DCR RLG
Brand: Taiwan Semiconductor Corporation
SKU: TQM110NB04DCR RLG
Price: 3.88 USD
Availability: InStock

REF: TQM110NB04DCR RLG Taiwan Semiconductor Corporation

TQM110NB04DCR RLG

Taiwan Semiconductor Corporation

40V, 50A, DUAL N-CHANNEL POWER M

TQM110NB04DCR RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. 40V, 50A, DUAL N-CHANNEL POWER M. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 2.5W (Ta), 58W (Tc).

Request a Quote

In Stock: 3,247

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	10A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs	11mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	3.8V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	26nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1354pF @ 20V
Power - Max	2.5W (Ta), 58W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-PowerTDFN
Supplier Device Package	8-PDFNU (5x6)
