STL8DN10LF3

In Stock: 1,613

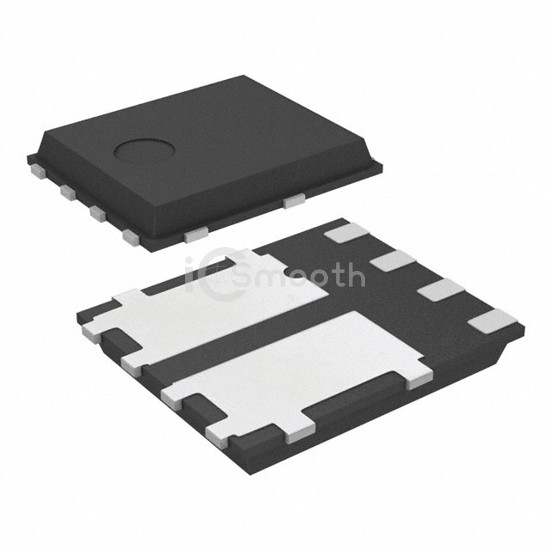

STL8DN10LF3 - STMicroelectronics - Transistors - FETs, MOSFETs - Arrays
REF: STL8DN10LF3 STMicroelectronics
STL8DN10LF3

STMicroelectronics

MOSFET 2N-CH 100V 20A 5X6

STL8DN10LF3 is a Transistors - FETs, MOSFETs - Arrays manufactured by STMicroelectronics. MOSFET 2N-CH 100V 20A 5X6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 70W.

Datasheet Request a Quote

In Stock: 1,613

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs35mOhm @ 4A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds970pF @ 25V
Power - Max70W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePowerFlat™ (5x6)
