STL40DN3LLH5

In Stock: 2,828

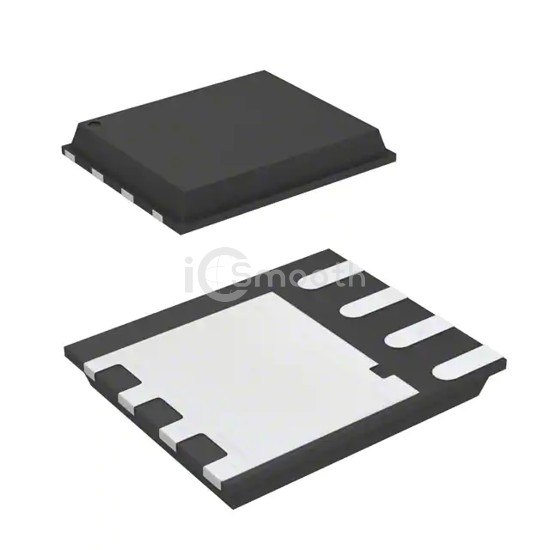

STL40DN3LLH5 - STMicroelectronics - Transistors - FETs, MOSFETs - Arrays
REF: STL40DN3LLH5 STMicroelectronics
STL40DN3LLH5

STMicroelectronics

MOSFET 2N-CH 30V 40A POWERFLAT56

STL40DN3LLH5 is a Transistors - FETs, MOSFETs - Arrays manufactured by STMicroelectronics. MOSFET 2N-CH 30V 40A POWERFLAT56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 60W.

Datasheet Request a Quote

In Stock: 2,828

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C40A
Rds On (Max) @ Id, Vgs18mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds475pF @ 25V
Power - Max60W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePowerFlat™ (5x6)
