Name: STL40C30H3LL
Brand: STMicroelectronics
SKU: STL40C30H3LL
Availability: InStock

REF: STL40C30H3LL STMicroelectronics

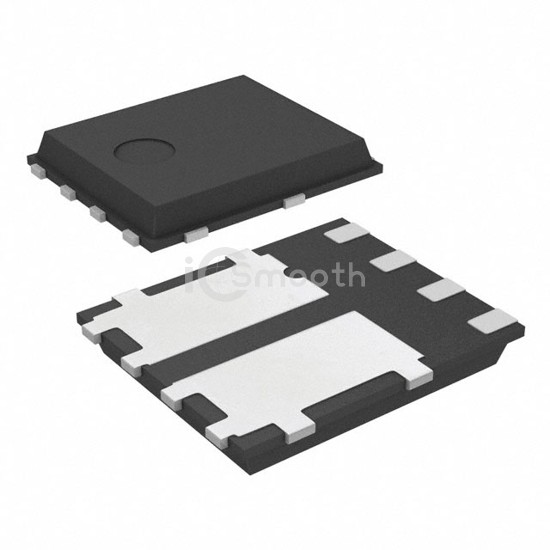

STL40C30H3LL

MOSFET N/P-CH 30V POWERFLAT

STL40C30H3LL is a Transistors - FETs, MOSFETs - Arrays manufactured by STMicroelectronics. MOSFET N/P-CH 30V POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 60W.

Datasheet Request a Quote

In Stock: 4,063

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	40A, 30A
Rds On (Max) @ Id, Vgs	21mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA (Min)

Gate Charge (Qg) (Max) @ Vgs	4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	475pF @ 24V
Power - Max	60W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PowerFlat™ (5x6)
