Name: STL36DN6F7
Brand: STMicroelectronics
SKU: STL36DN6F7
Price: 1.15 USD
Availability: InStock

REF: STL36DN6F7 STMicroelectronics

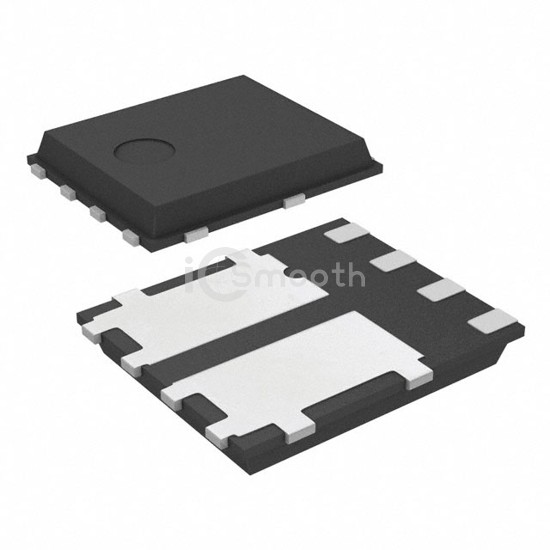

STL36DN6F7

MOSFET 2 N-CH 60V 33A POWERFLAT

STL36DN6F7 is a Transistors - FETs, MOSFETs - Arrays manufactured by STMicroelectronics. MOSFET 2 N-CH 60V 33A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN, power - max 58W.

Datasheet Request a Quote

In Stock: 5,685

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	33A (Tc)
Rds On (Max) @ Id, Vgs	27mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	420pF @ 30V
Power - Max	58W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PowerFlat™ (5x6)
