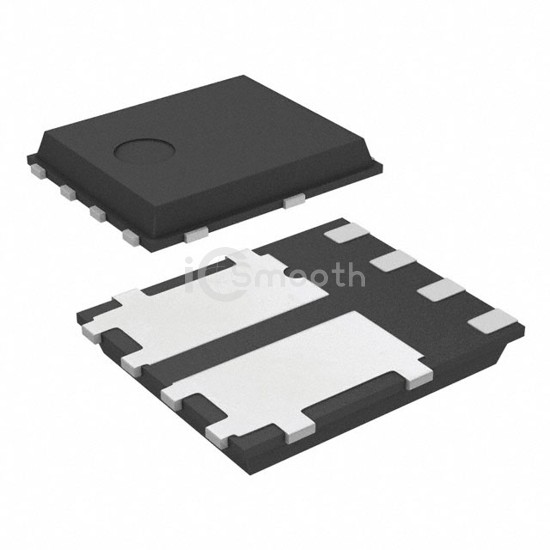

Name: STL20DN10F7
Brand: STMicroelectronics
SKU: STL20DN10F7
Availability: InStock

REF: STL20DN10F7 STMicroelectronics

STL20DN10F7

MOSFET 2N-CH 100V 20A PWRFLAT56

STL20DN10F7 is a Transistors - FETs, MOSFETs - Arrays manufactured by STMicroelectronics. MOSFET 2N-CH 100V 20A PWRFLAT56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN, power - max 62.5W.

Datasheet Request a Quote

In Stock: 4,981

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	20A
Rds On (Max) @ Id, Vgs	67mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	408pF @ 50V
Power - Max	62.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PowerFlat™ (5x6)
