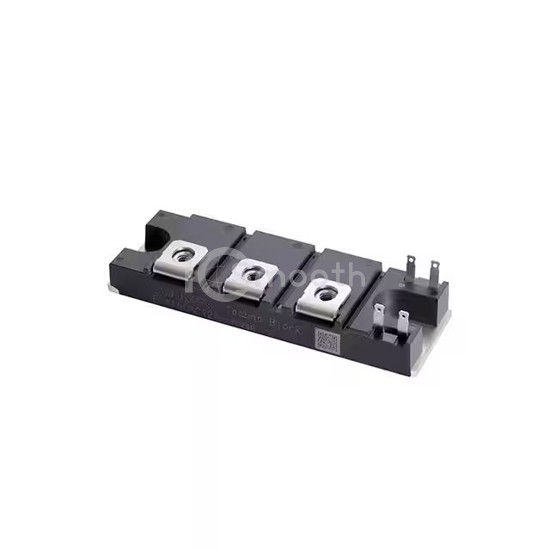

FCA150AC120

SanRex Corporation

1200V 4.5M SIC MOSFET

FCA150AC120 is a Transistors - FETs, MOSFETs - Arrays manufactured by SanRex Corporation. 1200V 4.5M SIC MOSFET. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, power - max 1135W (Tc).

Datasheet Request a Quote

In Stock: 4,575

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	150A (Tc)
Rds On (Max) @ Id, Vgs	9.3mOhm @ 150A, 20V
Vgs(th) (Max) @ Id	5V @ 4.5mA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	25300pF @ 20V
Power - Max	1135W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	-
