SMA5125

In Stock: 2,475

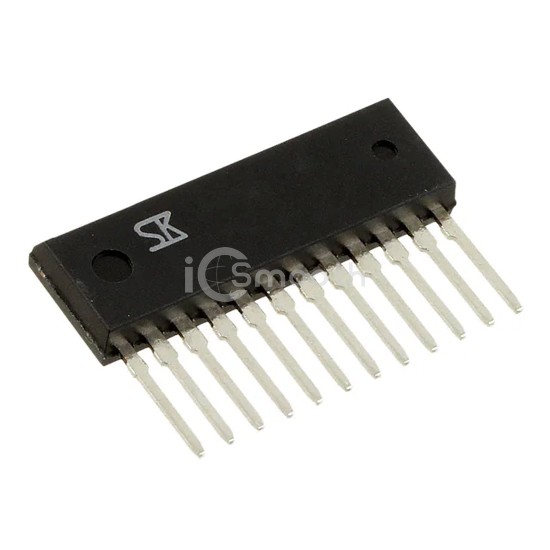

SMA5125 - Sanken - Transistors - FETs, MOSFETs - Arrays
REF: SMA5125 Sanken
SMA5125

Sanken

MOSFET 3N/3P-CH 60V 10A 12-SIP

SMA5125 is a Transistors - FETs, MOSFETs - Arrays manufactured by Sanken. MOSFET 3N/3P-CH 60V 10A 12-SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 12-SIP, power - max 4W.

Datasheet Request a Quote

In Stock: 2,475

Specifications

14 parameters
Product StatusObsolete
FET Type3 N and 3 P-Channel (3-Phase Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C10A
Rds On (Max) @ Id, Vgs140mOhm @ 5A, 4V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds460pF @ 10V
Power - Max4W
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case12-SIP
Supplier Device Package12-SIP
