SMA5117

In Stock: 31

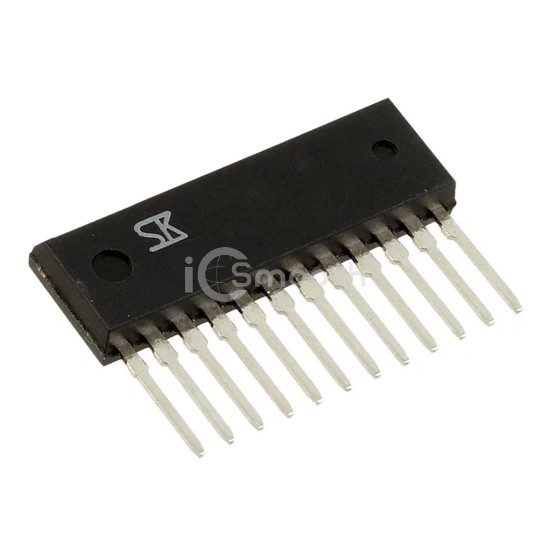

SMA5117 - Sanken - Transistors - FETs, MOSFETs - Arrays
REF: SMA5117 Sanken
SMA5117

Sanken

MOSFET 6N-CH 250V 7A 12-SIP

SMA5117 is a Transistors - FETs, MOSFETs - Arrays manufactured by Sanken. MOSFET 6N-CH 250V 7A 12-SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 12-SIP, power - max 4W.

Datasheet Request a Quote

In Stock: 31

Specifications

14 parameters
Product StatusActive
FET Type6 N-Channel (3-Phase Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)250V
Current - Continuous Drain (Id) @ 25°C7A
Rds On (Max) @ Id, Vgs250mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds850pF @ 10V
Power - Max4W
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case12-SIP
Supplier Device Package12-SIP
