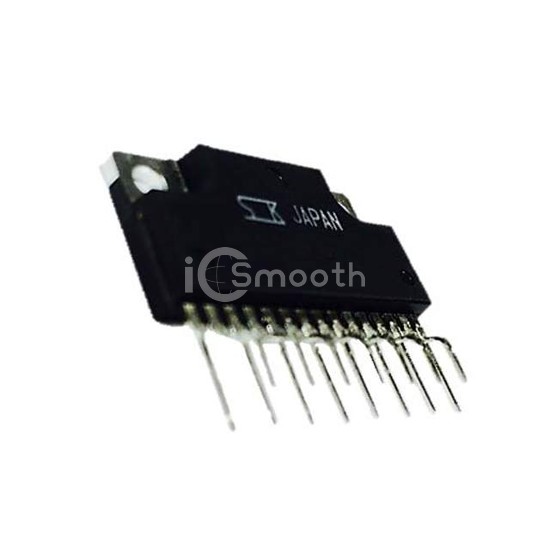

Name: SLA5074
Brand: Sanken
SKU: SLA5074
Price: 2.73 USD
Availability: InStock

REF: SLA5074 Sanken

SLA5074

MOSFET 4N-CH 60V 5A 15-SIP

SLA5074 is a Transistors - FETs, MOSFETs - Arrays manufactured by Sanken. MOSFET 4N-CH 60V 5A 15-SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 15-SIP Exposed Tab, Formed Leads, power - max 4.8W.

Datasheet Request a Quote

In Stock: 5,082

Specifications

14 parameters

Product Status	Active
FET Type	4 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	5A
Rds On (Max) @ Id, Vgs	300mOhm @ 3A, 4V
Vgs(th) (Max) @ Id	2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	320pF @ 10V
Power - Max	4.8W
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	15-SIP Exposed Tab, Formed Leads
Supplier Device Package	15-ZIP
