SLA5059

In Stock: 5,176

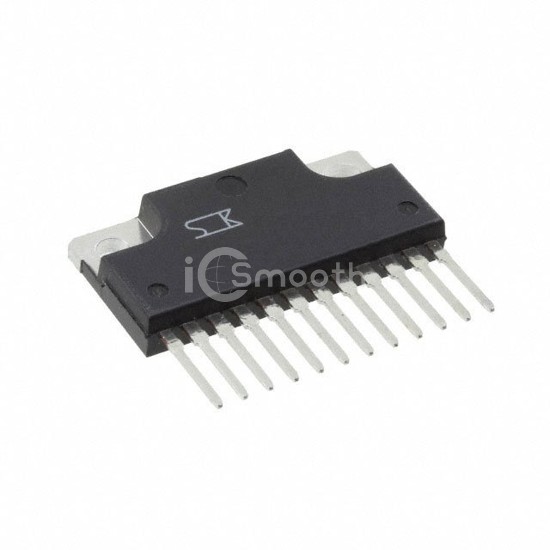

SLA5059 - Sanken - Transistors - FETs, MOSFETs - Arrays
REF: SLA5059 Sanken
SLA5059

Sanken

MOSFET 3N/3P-CH 60V 4A 12-SIP

SLA5059 is a Transistors - FETs, MOSFETs - Arrays manufactured by Sanken. MOSFET 3N/3P-CH 60V 4A 12-SIP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 12-SIP Exposed Tab, power - max 5W.

Datasheet Request a Quote

In Stock: 5,176

Specifications

14 parameters
Product StatusActive
FET Type3 N and 3 P-Channel (3-Phase Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C4A
Rds On (Max) @ Id, Vgs550mOhm @ 2A, 4V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds150pF @ 10V
Power - Max5W
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case12-SIP Exposed Tab
Supplier Device Package12-SIP
