RJM0306JSP-01#J0

In Stock: 6,300

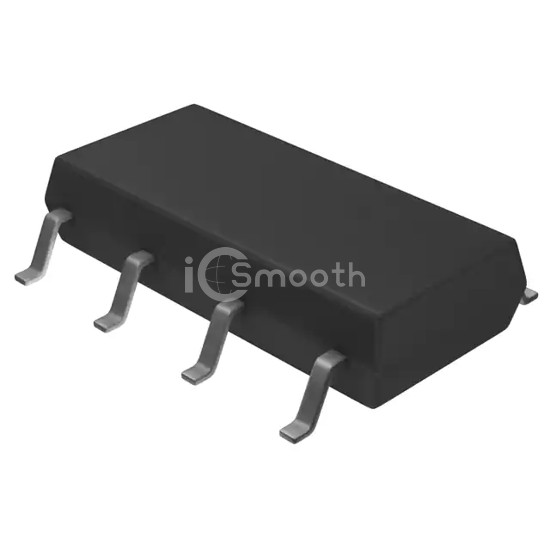

RJM0306JSP-01#J0 - Renesas Electronics America Inc - Transistors - FETs, MOSFETs - Arrays
REF: RJM0306JSP-01#J0 Renesas Electronics America Inc
RJM0306JSP-01#J0

Renesas Electronics America Inc

MOSFET 2N/2P-CH 30V 3.5A 8-SOP

RJM0306JSP-01#J0 is a Transistors - FETs, MOSFETs - Arrays manufactured by Renesas Electronics America Inc. MOSFET 2N/2P-CH 30V 3.5A 8-SOP. Key specifications: mounting type Surface Mount, package / case 8-SOIC (0.154", 3.90mm Width), power - max 2.2W.

Request a Quote

In Stock: 6,300

Specifications

14 parameters
Product StatusActive
FET Type2 N and 2 P-Channel (Half Bridge)
FET FeatureLogic Level Gate, 4V Drive
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C3.5A
Rds On (Max) @ Id, Vgs65mOhm @ 2A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds290pF @ 10V
Power - Max2.2W
Operating Temperature-
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOP
