NP30N04QUK-E1-AY

In Stock: 5,389

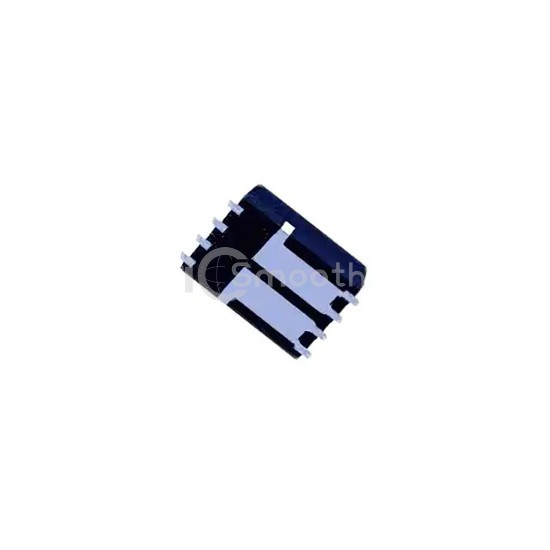

NP30N04QUK-E1-AY - Renesas Electronics America Inc - Transistors - FETs, MOSFETs - Arrays
REF: NP30N04QUK-E1-AY Renesas Electronics America Inc
NP30N04QUK-E1-AY

Renesas Electronics America Inc

POWER TRS2 AUTOMOTIVE MOS 8P HSO

NP30N04QUK-E1-AY is a Transistors - FETs, MOSFETs - Arrays manufactured by Renesas Electronics America Inc. POWER TRS2 AUTOMOTIVE MOS 8P HSO. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerLDFN, power - max 1W (Ta), 59W (Tc).

Datasheet Request a Quote

In Stock: 5,389

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Rds On (Max) @ Id, Vgs8mOhm @ 15A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs41nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2400pF @ 25V
Power - Max1W (Ta), 59W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Package / Case8-PowerLDFN
Supplier Device Package8-HSON (5x5.4)
