Name: RMD7N40DN
Brand: Rectron USA
SKU: RMD7N40DN
Price: 0.24 USD
Availability: InStock

REF: RMD7N40DN Rectron USA

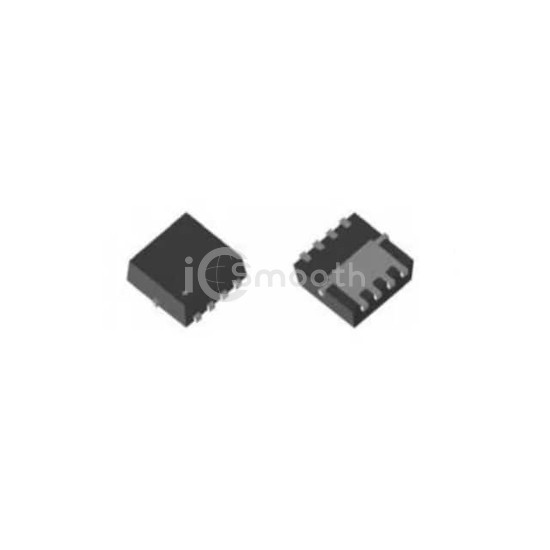

RMD7N40DN

MOSFET 2 N-CH 40V 7A /20A 8-DFN

RMD7N40DN is a Transistors - FETs, MOSFETs - Arrays manufactured by Rectron USA. MOSFET 2 N-CH 40V 7A /20A 8-DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 1.9W (Ta), 12W (Tc).

Request a Quote

In Stock: 7,579

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	7A (Ta), 20A (Tc)
Rds On (Max) @ Id, Vgs	20mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	720pF @ 20V
Power - Max	1.9W (Ta), 12W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-DFN (3x3)
