Name: RM6602
Brand: Rectron USA
SKU: RM6602
Price: 0.13 USD
Availability: InStock

REF: RM6602 Rectron USA

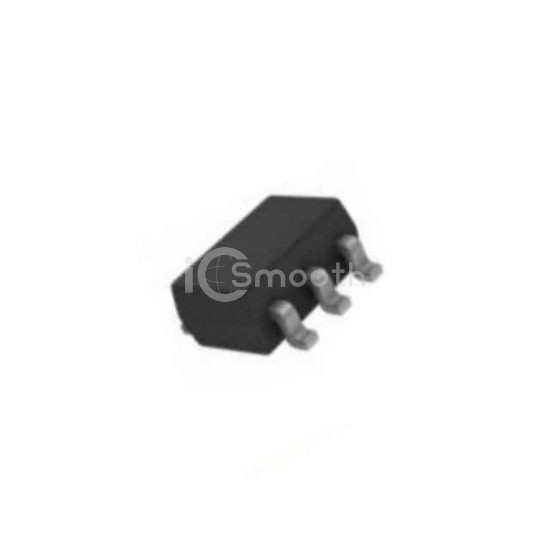

RM6602

MOSFET N&P-CH 30V 3.5/2.7A SOT23

RM6602 is a Transistors - FETs, MOSFETs - Arrays manufactured by Rectron USA. MOSFET N&P-CH 30V 3.5/2.7A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6 Thin, TSOT-23-6, power - max 1.2W (Ta).

Request a Quote

In Stock: 3,275

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta), 2.7A (Ta)
Rds On (Max) @ Id, Vgs	58mOhm @ 3.5A, 10V, 100mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA, 2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	210pF @ 15V, 199pF @ 15V
Power - Max	1.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	TSOT-23-6
