Name: RM4503S8
Brand: Rectron USA
SKU: RM4503S8
Price: 0.19 USD
Availability: InStock

REF: RM4503S8 Rectron USA

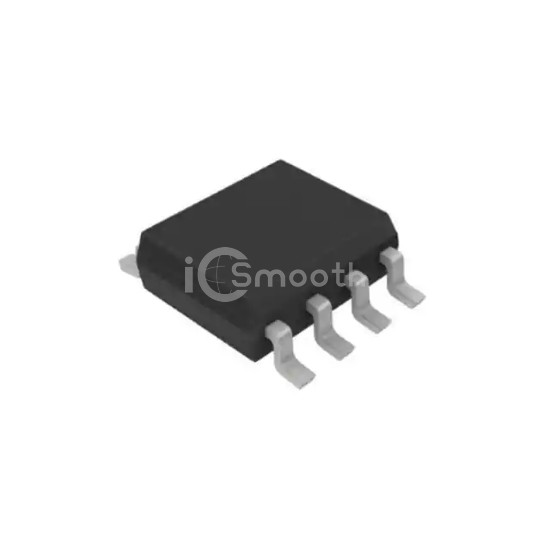

RM4503S8

MOSFET N&P-CH 30V 10A /9.1A 8SOP

RM4503S8 is a Transistors - FETs, MOSFETs - Arrays manufactured by Rectron USA. MOSFET N&P-CH 30V 10A /9.1A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 2.5W (Ta).

Request a Quote

In Stock: 6,511

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	10A (Ta), 9.1A (Ta)
Rds On (Max) @ Id, Vgs	10mOhm @ 10A, 10V, 20mOhm @ 9.1A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	13nC @ 4.5V, 30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1550pF @ 15V, 1600pF @ 15V
Power - Max	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
