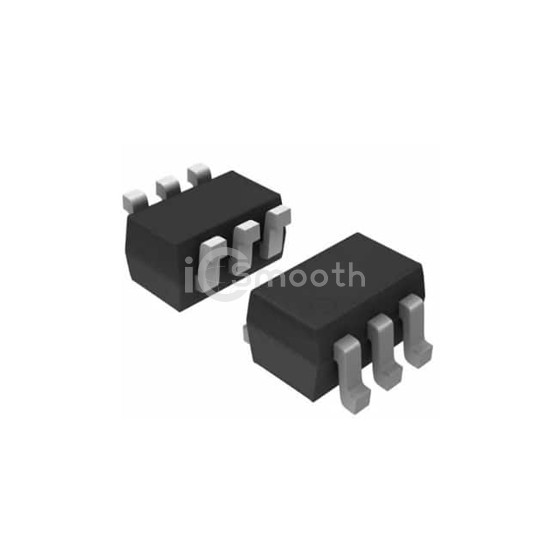

RM2520ES6

MOSFET N&P-CH 25/20V SOT23-6

RM2520ES6 is a Transistors - FETs, MOSFETs - Arrays manufactured by Rectron USA. MOSFET N&P-CH 25/20V SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6, power - max 800mW (Ta).

Request a Quote

In Stock: 6,657

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	25V, 20V
Current - Continuous Drain (Id) @ 25°C	1.1A (Ta), 800mA (Ta)
Rds On (Max) @ Id, Vgs	1.2Ohm @ 500mA, 4.5V, 600mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA, 1.1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	1.8pC @ 4.5V, 0.6pC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	87pF @ 10V, 30pF @ 10V
Power - Max	800mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6
