Name: RM2004NE
Brand: Rectron USA
SKU: RM2004NE
Price: 0.09 USD
Availability: InStock

REF: RM2004NE Rectron USA

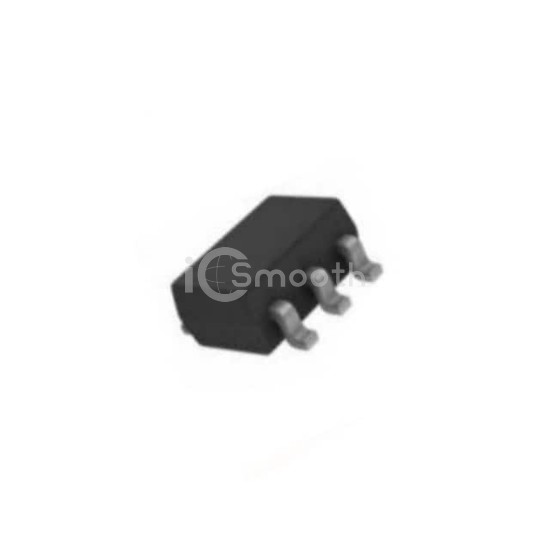

RM2004NE

MOSFET 2 N-CH 20V 6A SOT23-6

RM2004NE is a Transistors - FETs, MOSFETs - Arrays manufactured by Rectron USA. MOSFET 2 N-CH 20V 6A SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6, power - max 1.25W (Ta).

Request a Quote

In Stock: 7,749

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Rds On (Max) @ Id, Vgs	24mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	650pF @ 10V
Power - Max	1.25W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6
