Name: RM2003
Brand: Rectron USA
SKU: RM2003
Price: 0.06 USD
Availability: InStock

REF: RM2003 Rectron USA

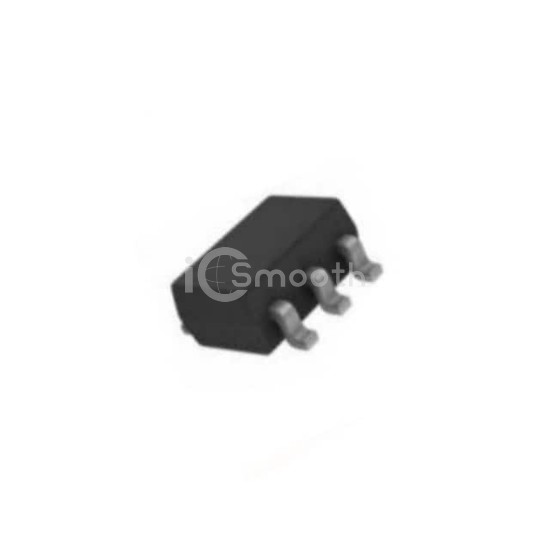

RM2003

MOSFET N&P-CH 20V 3A SOT23-6

RM2003 is a Transistors - FETs, MOSFETs - Arrays manufactured by Rectron USA. MOSFET N&P-CH 20V 3A SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6, power - max 800mW (Ta).

Request a Quote

In Stock: 4,473

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Rds On (Max) @ Id, Vgs	35mOhm @ 3A, 4.5V, 75mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA, 1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	5nC @ 4.5V, 3.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	260pF @ 10V, 325pF @ 10V
Power - Max	800mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6
