Name: PAA12400BM3
Brand: PN Junction Semiconductor
SKU: PAA12400BM3
Price: 882.36 USD
Availability: InStock

REF: PAA12400BM3 PN Junction Semiconductor

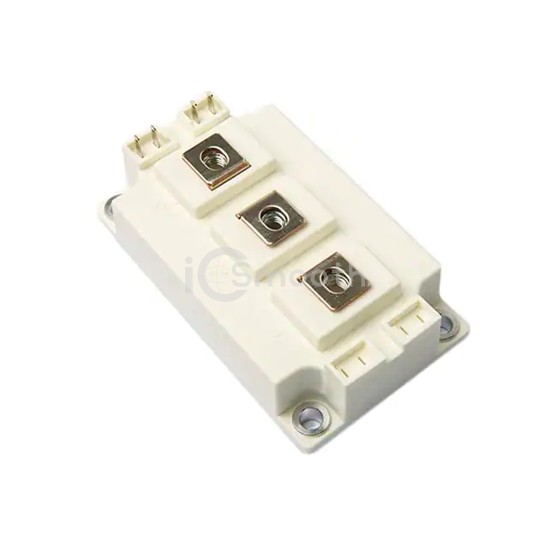

PAA12400BM3

PN Junction Semiconductor

1200V HALF-BRIDGE

PAA12400BM3 is a Transistors - FETs, MOSFETs - Arrays manufactured by PN Junction Semiconductor. 1200V HALF-BRIDGE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 3,908

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	350A
Rds On (Max) @ Id, Vgs	7.3mOhm @ 300A, 20V
Vgs(th) (Max) @ Id	5V @ 100mA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	29.5pF @ 1000V
Power - Max	-
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
