Name: PJX8806_R1_00001
Brand: Panjit International Inc.
SKU: PJX8806_R1_00001
Price: 0.44 USD
Availability: InStock

REF: PJX8806_R1_00001 Panjit International Inc.

PJX8806_R1_00001

Panjit International Inc.

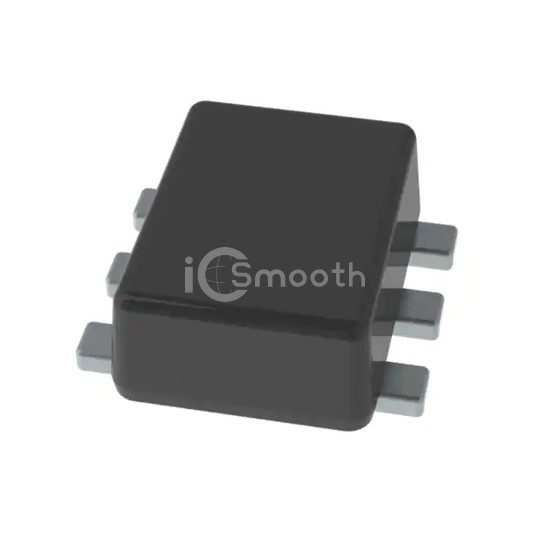

20V N-CHANNEL ENHANCEMENT MODE M

PJX8806_R1_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 20V N-CHANNEL ENHANCEMENT MODE M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 350mW (Ta).

Request a Quote

In Stock: 1,875

Specifications

14 parameters

Product Status	Not For New Designs
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	800mA (Ta)
Rds On (Max) @ Id, Vgs	400mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	0.92nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 10V
Power - Max	350mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
