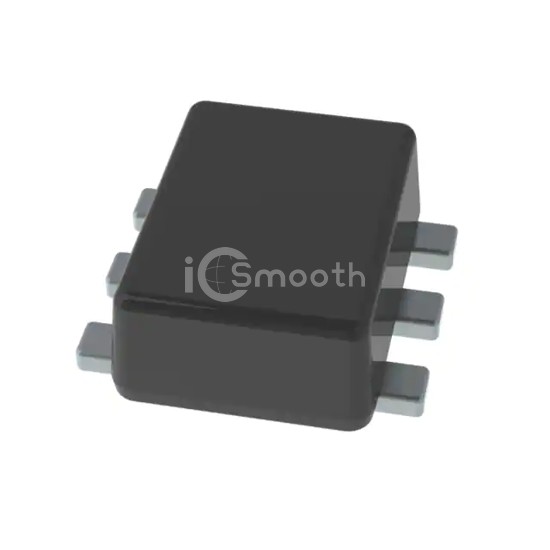

Name: PJX8603_R1_00001
Brand: Panjit International Inc.
SKU: PJX8603_R1_00001
Price: 0.43 USD
Availability: InStock

REF: PJX8603_R1_00001 Panjit International Inc.

PJX8603_R1_00001

Panjit International Inc.

COMPLEMENTARY ENHANCEMENT MODE M

PJX8603_R1_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. COMPLEMENTARY ENHANCEMENT MODE M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 300mW (Ta).

Datasheet Request a Quote

In Stock: 8,327

Specifications

14 parameters

Product Status	Active
FET Type	N and P-Channel Complementary
FET Feature	Standard
Drain to Source Voltage (Vdss)	50V, 60V
Current - Continuous Drain (Id) @ 25°C	360mA (Ta), 200mA (Ta)
Rds On (Max) @ Id, Vgs	1.5Ohm @ 500mA, 10V, 6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	1V @ 250µA, 2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	0.95nC @ 4.5V, 1.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	36pF @ 25V, 51pF @ 25V
Power - Max	300mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
