PJS6811_S1_00001

In Stock: 8,482

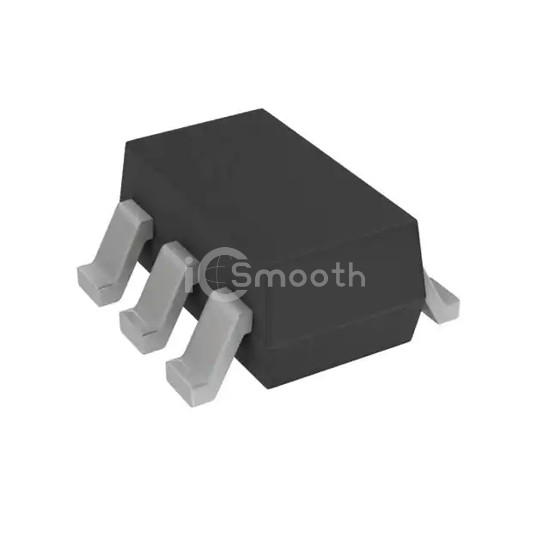

PJS6811_S1_00001 - Panjit International Inc. - Transistors - FETs, MOSFETs - Arrays
REF: PJS6811_S1_00001 Panjit International Inc.
PJS6811_S1_00001

Panjit International Inc.

20V P-CHANNEL ENHANCEMENT MODE M

PJS6811_S1_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 20V P-CHANNEL ENHANCEMENT MODE M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6, power - max 1.25W (Ta).

Request a Quote

In Stock: 8,482

Specifications

14 parameters
Product StatusActive
FET Type2 P-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.7A (Ta)
Rds On (Max) @ Id, Vgs105mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds416pF @ 10V
Power - Max1.25W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6
Supplier Device PackageSOT-23-6
