PJS6604_S2_00001

In Stock: 6,300

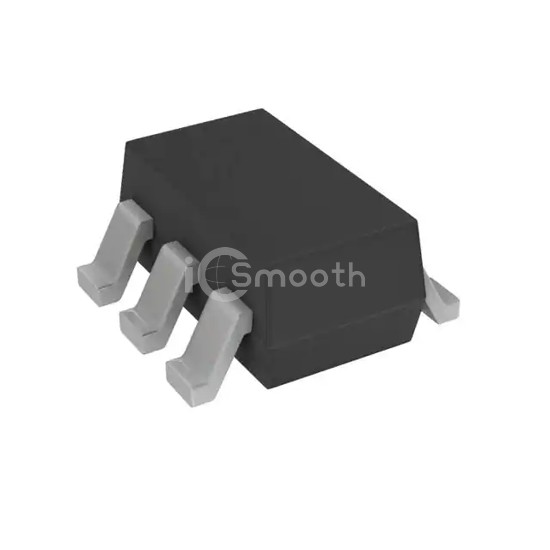

PJS6604_S2_00001 - Panjit International Inc. - Transistors - FETs, MOSFETs - Arrays
REF: PJS6604_S2_00001 Panjit International Inc.
PJS6604_S2_00001

Panjit International Inc.

30V COMPLEMENTARY ENHANCEMENT MO

PJS6604_S2_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 30V COMPLEMENTARY ENHANCEMENT MO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6, power - max 1.25W (Ta).

Request a Quote

In Stock: 6,300

Specifications

14 parameters
Product StatusActive
FET TypeN and P-Channel Complementary
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C4.4A (Ta), 3.1A (Ta)
Rds On (Max) @ Id, Vgs48mOhm @ 4.4A, 10V, 98mOhm @ 3.1A, 10V
Vgs(th) (Max) @ Id1.2V @ 250µA, 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11.3nC @ 10V, 11nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds447pF @ 15V, 443pF @ 15V
Power - Max1.25W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6
Supplier Device PackageSOT-23-6
