Name: PJQ4848P_R2_00001
Brand: Panjit International Inc.
SKU: PJQ4848P_R2_00001
Price: 0.71 USD
Availability: InStock

REF: PJQ4848P_R2_00001 Panjit International Inc.

PJQ4848P_R2_00001

Panjit International Inc.

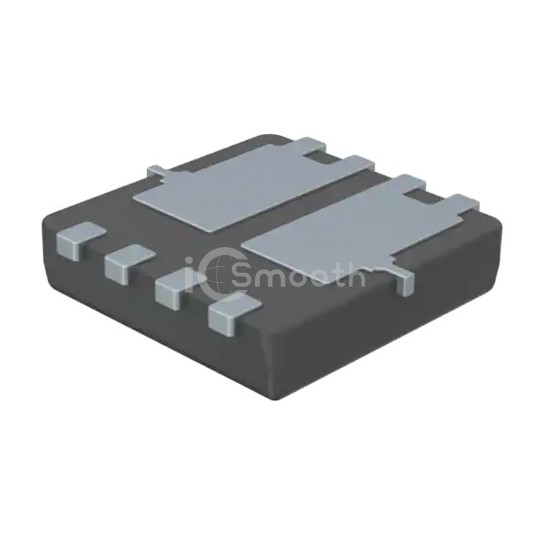

40V DUAL N-CHANNEL ENHANCEMENT M

PJQ4848P_R2_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 40V DUAL N-CHANNEL ENHANCEMENT M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 2W (Ta), 33W (Tc).

Request a Quote

In Stock: 3,341

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	9A (Ta), 37A (Tc)
Rds On (Max) @ Id, Vgs	15mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1040pF @ 20V
Power - Max	2W (Ta), 33W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	DFN3333B-8
