Name: PJQ2815_R1_00001
Brand: Panjit International Inc.
SKU: PJQ2815_R1_00001
Price: 0.71 USD
Availability: InStock

REF: PJQ2815_R1_00001 Panjit International Inc.

PJQ2815_R1_00001

Panjit International Inc.

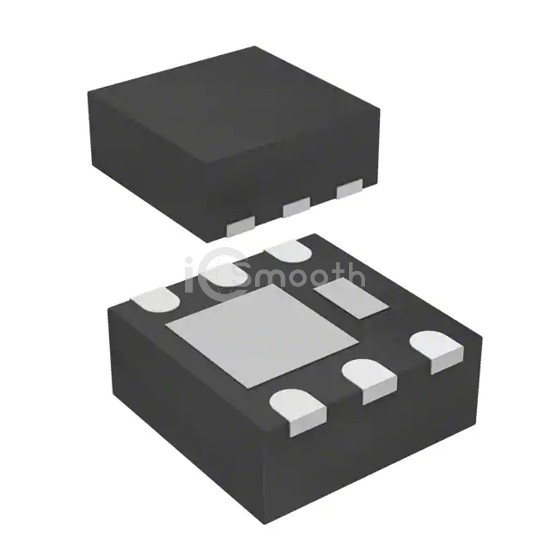

DFN2020-6L, MOSFET

PJQ2815_R1_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. DFN2020-6L, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 1.5W (Ta).

Datasheet Request a Quote

In Stock: 2,185

Specifications

14 parameters

Product Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.2A (Ta)
Rds On (Max) @ Id, Vgs	52mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA

Gate Charge (Qg) (Max) @ Vgs	24nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	907pF @ 10V
Power - Max	1.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	DFN2020-6L
