Name: PJL9830A_R2_00001
Brand: Panjit International Inc.
SKU: PJL9830A_R2_00001
Price: 0.62 USD
Availability: InStock

REF: PJL9830A_R2_00001 Panjit International Inc.

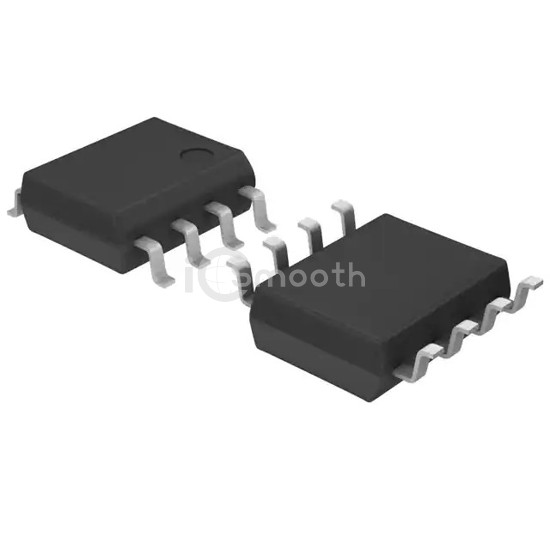

PJL9830A_R2_00001

Panjit International Inc.

60V DUAL N-CHANNEL ENHANCEMENT M

PJL9830A_R2_00001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Panjit International Inc.. 60V DUAL N-CHANNEL ENHANCEMENT M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 2.5W (Ta).

Request a Quote

In Stock: 4,158

Specifications

14 parameters

Product Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	4.8A (Ta)
Rds On (Max) @ Id, Vgs	50mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	14nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	815pF @ 15V
Power - Max	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOP
